Dimensional pricing

Dimensional pricing allows you to create sophisticated pricing models that vary based on multiple dimensions or properties of your usage events. It offers unlimited flexibility to price each dimension independently, making it ideal for complex, large-scale billing use cases.

Dimensional pricing replaces the deprecated Matrix pricing model, which was limited to two dimensions. If you’re migrating from Matrix pricing, see this guide.

What is dimensional pricing?

Dimensional pricing groups your usage data by one or more dimensions (properties), then applies pricing rules to each unique combination of dimension values. Think of it as applying a “GROUP BY” operation across your chosen dimensions, then pricing each group separately. For example, you might want to price compute usage differently based on the unique combinations of:

Region (us-east-1 vs eu-west-1)
Instance type (small vs large vs xlarge)
Environment (production vs staging)

With dimensional pricing, you can create a single price group that handles all these combinations automatically.

Key benefits

Unlimited dimensions: Define pricing across any number of usage dimensions - such as region, environment, or instance type - for granular control and flexibility.
Better performance: Optimized to handle complex, large-scale pricing scenarios efficiently.
Simplified management: One pricing configuration covers all combinations of dimensions, reducing setup and maintenance overhead.
Flexible discounts: Apply discounts across specific dimensions or dimension combinations

How it works

1. Define your dimensions

First, identify which event properties you want to use as pricing dimensions. These should be properties that are consistently present in your events and represent meaningful pricing differentiators. Common dimension examples:

region - Geographic location
instance_type - Resource size or tier
environment - Production vs staging
product_tier - Different product offerings
data_center - Physical infrastructure location

2. Create a dimensional price group

Create a dimensional price group that defines the dimensions and their possible values with pricing for each combination.

3. Configure prices to use the group

Create prices that reference the dimensional price group and specify which dimension values should be used for that specific price.

Configuration example

Here’s how to configure dimensional pricing via the API:

{
"model_type": "unit",
"unit_config": {
    "unit_amount": "1.00"
},
"dimensional_price_group_config": {
    "external_dimensional_price_group_id": "region-instance-pricing",
    "dimension_values": ["us-east-1", "small"]
}
}

In this example:

The price uses any pricing model (unit in this case)
It references an existing dimensional price group by external_dimensional_price_group_id
The dimension_values array specifies the exact dimension combination this price applies to, in the same order as defined in the group

Using tiered pricing

You can also reference a group by its internal ID:

{
"model_type": "tiered",
"tiered_config": {
    "tiers": [
    {
        "first_unit": 0,
        "last_unit": 100,
        "unit_amount": "0.10"
    }
    ]
},
"dimensional_price_group_config": {
    "dimensional_price_group_id": "dpg_12345",
    "dimension_values": ["eu-west-1", "large"]
}
}

Setting up dimensional pricing

In the Orb dashboard

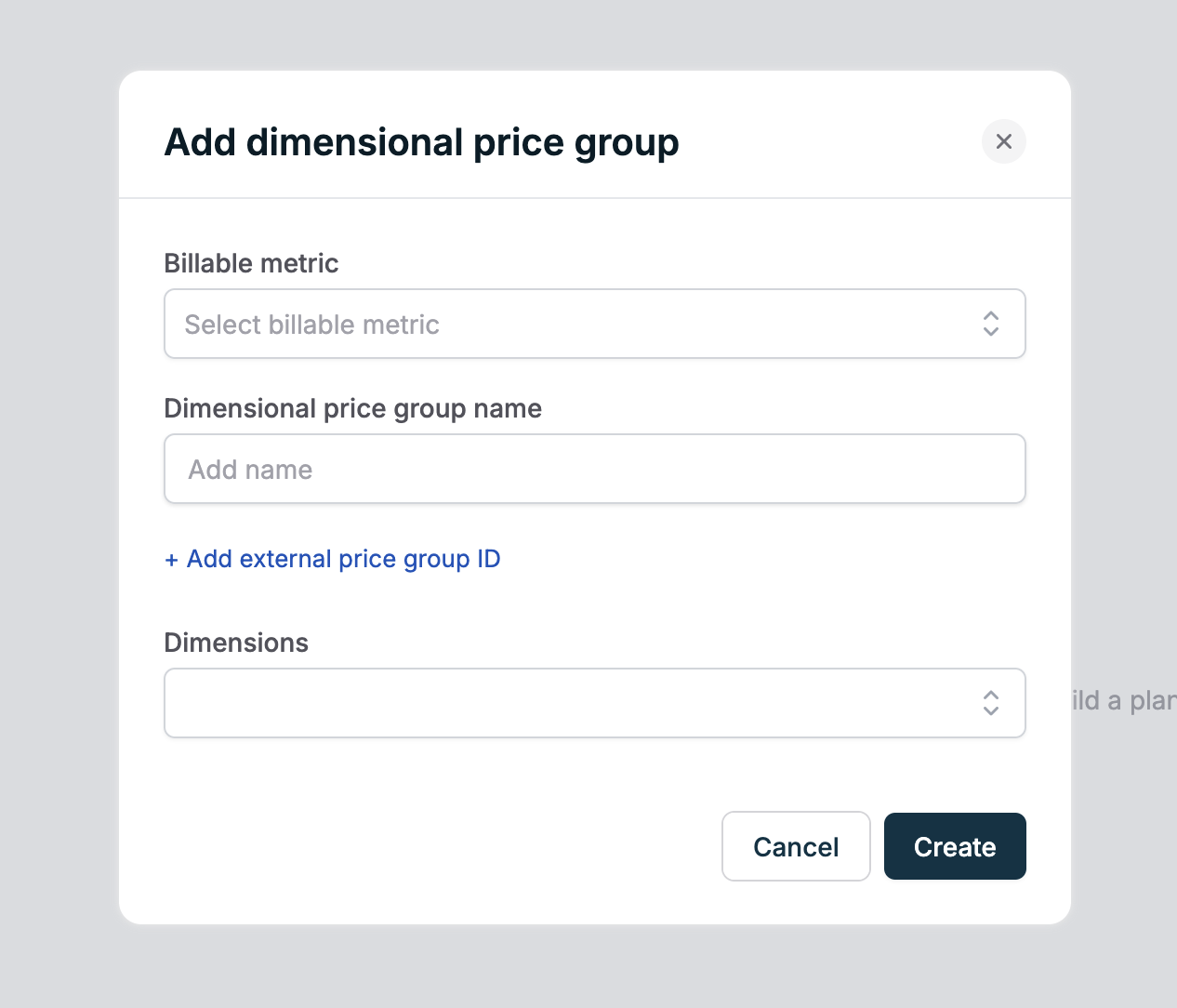

Create a dimensional price group during plan creation or subscription creation by specifying the dimensions you want to use

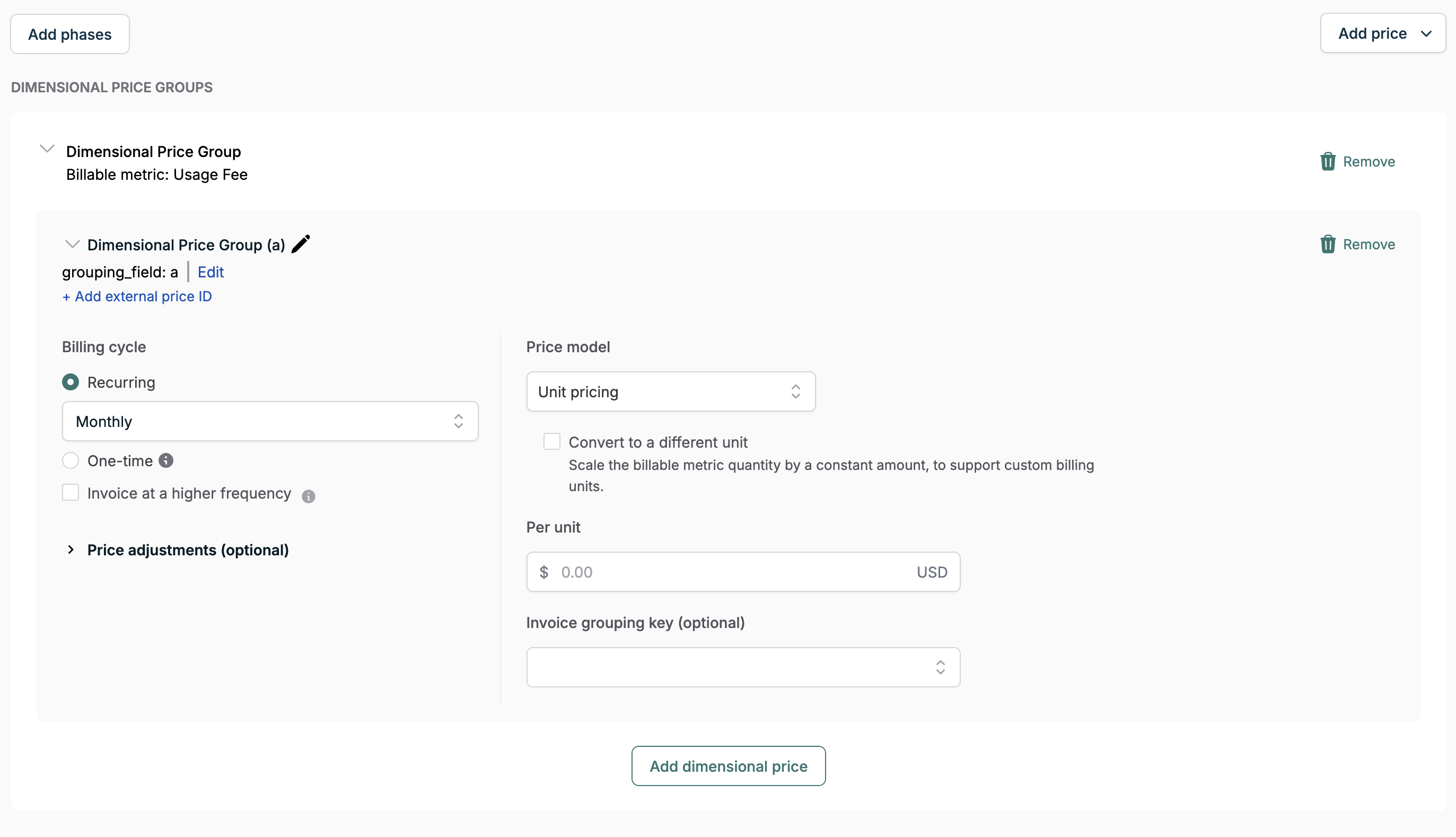

Add a price to the dimensional price group (just like adding a price to a plan)

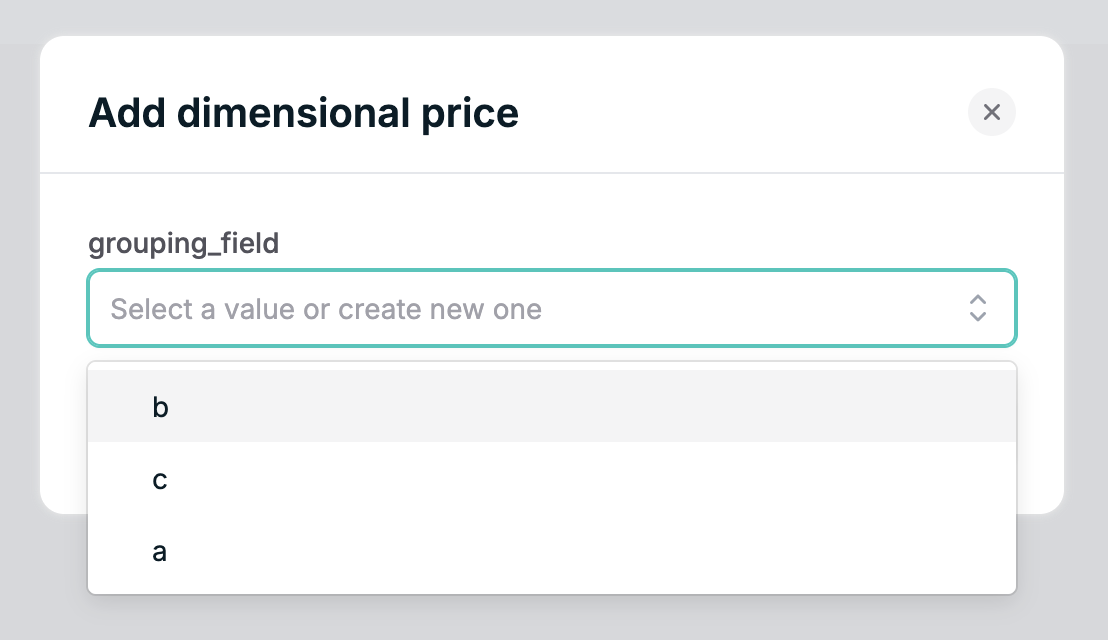

Specify the price’s dimension values for the specific combination this price applies to
Choose any pricing model (unit, tiered, etc.) and configure it as usual

Via API

Create a dimensional price group first
Use the Create Price API endpoint with the dimensional_price_group_config object as shown in the configuration example above

Working with dimensional price groups

Dimensional pricing creates Dimensional Price Groups that manage the relationships between dimensions and their pricing. Each dimensional price group:

Has an optional external_id that can be used to reference the group in API calls
Contains all dimension value combinations and their pricing
Can be reused across multiple prices and plans
Supports updates to pricing without affecting active subscriptions

Managing dimensional price groups

You can:

List all dimensional price groups in your account
Create a new dimensional price group

Best practices

1. Plan your dimensions carefully

Choose dimensions that are stable and consistently present in your events
Avoid using dimensions with high cardinality (too many unique values)
Consider your pricing strategy before implementing

2. Use meaningful external IDs

Give your dimensional price groups descriptive external_id values when you need to reference them programmatically
This makes them easier to manage and reference in API calls
Example: “compute-region-instance-pricing” vs “dpg-123”

3. Configure all necessary combinations

Explicitly define pricing for all dimension combinations you expect to encounter
Monitor for new dimension values in your usage data
Add new combinations as your product evolves

4. Test thoroughly

Build these in test mode first, and also ensure your code has been updated to reference the new dimensional pricing before migrating to dimensional pricing in production
Verify pricing works correctly for all dimension combinations
Use Orb’s simulation tools to test complex scenarios
Check invoice calculations before going live

Troubleshooting

Common issues

Missing dimension values in events

Ensure all required dimensions are present in your usage events
Verify dimension values in your events exactly match the configured values

Pricing not applied correctly

Check for case sensitivity and formatting differences
Ensure all expected dimension combinations are explicitly configured
Verify the dimension_values array matches the order defined in the price group

Getting help

If you need assistance with dimensional pricing:

Check the API reference for detailed endpoint documentation
Review the quickstart pricing guide for implementation examples
See the data exports guide for dimensional price group schema information
Learn about other pricing models available in Orb
Contact support for complex pricing scenario guidance

Migration from matrix pricing

Migration from matrix pricing to dimensional pricing can be done automatically for a specific plan as part of creating a new plan version.

We recommend that you run this first in your test mode before running in production, and also making sure your code is updated to reference the dimensional pricing.

Automatic migration

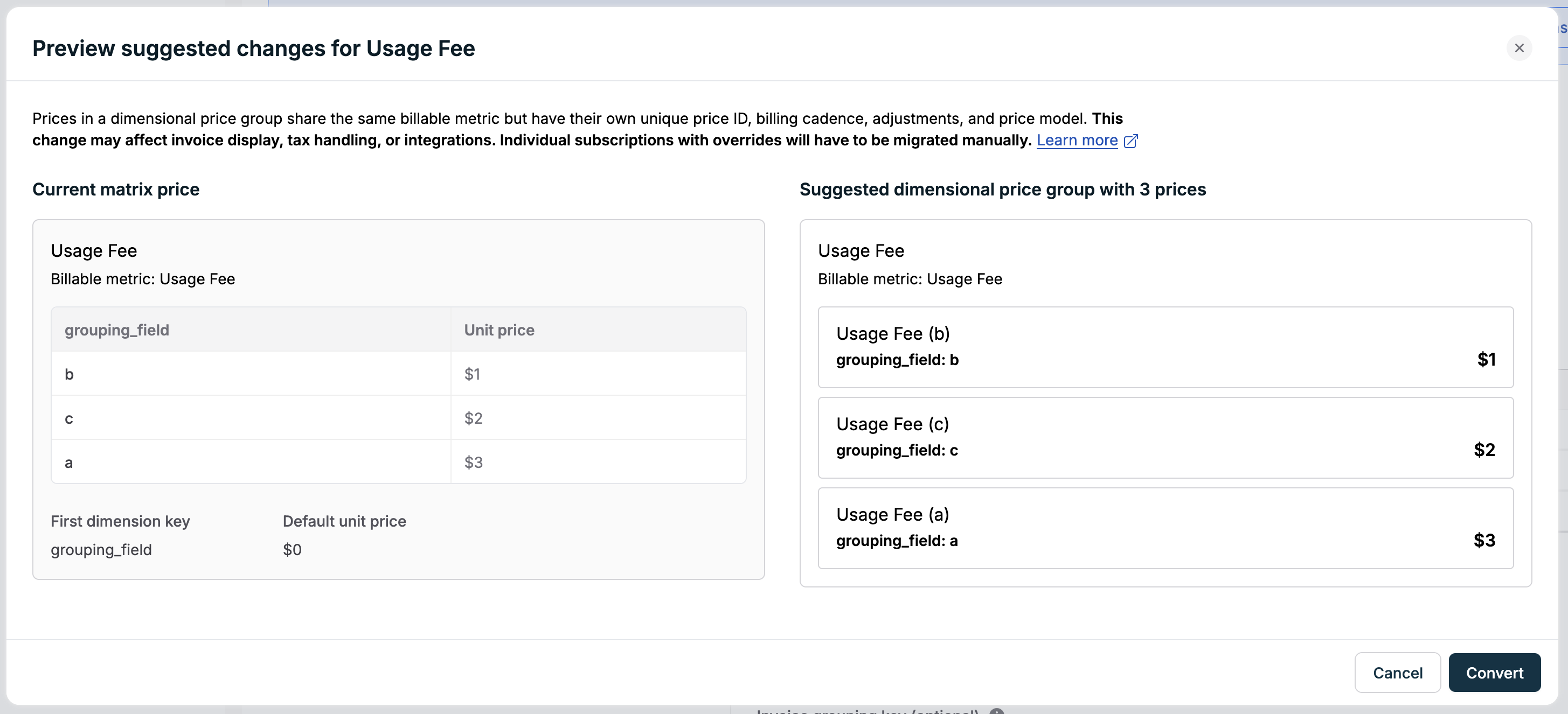

When you create a new plan version, Orb will provide you with the ability to automatically preview and convert eligible matrix prices into dimensional pricing. This includes carrying over relevant billable metrics, pricing values, and dimension keys into a corresponding dimensional price group. Current limitations of dimensional price groups:

We can’t automatically convert usage discounts
There’s currently no equivalent support in dimensional pricing for the “default unit amount” on a matrix price

The migration process is designed to be conservative: it automatically converts prices where it can do so safely and intentionally fails in cases that may introduce ambiguity, so you have full control over the outcome. Individual subscription migration failures: Orb’s migration flow is intentionally conservative when it comes to migrating individual subscriptions. In scenarios where automatic conversion could lead to unintended billing outcomes, we’ll intentionally fail those subscriptions so you can review them manually. We will fail to automatically migrate individual subscriptions where:

The subscription includes overrides for the matrix price - these may reflect intentional customizations that should be reviewed
The matrix price has already ended at the effective time of the migration - meaning it’s no longer active, and Orb can’t safely determine a 1:1 replacement

Handling failed migrations

For individual subscriptions that have failed to migrate automatically:

Plan change approach: A plan change to the same plan at the new version will effectively act as a version upgrade if scheduled at a billing period boundary, and will often have exactly the behavior you need
Need support: If there are too many failed subscriptions, or a plan change won’t have the behavior you’re expecting, reach out to Orb support for assistance

The key advantage of migrating to dimensional pricing is unlimited dimensions support with better performance and easier management.
